SYSTAG Thermal process safety

SYSTAG FlexyTSC calorimeters include sampling devices and control equipment. Measuring cells and test vessels are available from 2.5ml and for temperatures from -50°C. Control units have a modular set-up with monitor and FlexyTSC controller including power unit. Up to 6 units can be coupled to 1 PC (daisy chain).

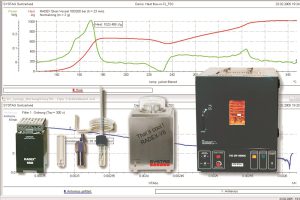

SYSTAG measuring cells and ovens for thermal process safety

The use of FlexyTSC

The adiabatic «thermal hazard screening» calorimeter provides experts with support in safety analysis of solids and liquids as well as non-homogeneous substances.
Thermodynamic evaluations with FlexyTSC offer clear analysis of undesired decomposition reactions or autocatalytic reactions regarding:

Onset temperature
Heat of decomposition
SHR (self-heating rate)
Arrhenius plot
TMR plot (time to maximum rate)
Activation energy
Antoine plot

Advantages of FlexyTSC calorimeters

Operation of up to 6 test units simultaneously or individually
Samples in gram range for analysis of non-homogenous substances
Various vessel types for varying process requirements
Temperature difference resolution +/- 0.01K
Recording and evaluation tools are available

Application limits of FlexyTSC calorimeters

Temperature	-50°C to +400°C
Sample volume	0.5ccm to 500ccm
Pressure	200 bar/ 400°C

Our specialists are here to advise on the optimal solution for your process. Our engineers will design a system for you according your specifications.
